Stainless Steel Plate

Pipe Type: Stainless Steel Sheet, 304 Stainless Steel Plate, 316 Stainless Steel Plate

Application: In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts

Specification: 3/16'' Thick ~ 6'' Thick, Up to 120'' Wide

Standard: ASTM A167, ASTM A176, ASTM A240, ASTM A693, ASTM A480

Steel Grades: 300 Series Stainless, 400 Series Stainless

Process Method: Hot Rolled

Surface: Annealed, Pickling, Polished

Packing: Waterproof Paper Wrapped, Packed in Wooden Cabins


Contact us :

Email:info@sunrisesteelgroup.com

Whatsapp:+0086-13875806221

DescriptionProcessEquipmentDimension Inquiry
Items Stainless Steel Plate
Standard GB/T14976-2002、GB13296-91、GB9948-88、ASTM/ASME A213/SA213、

ASTM/ASME A312/SA312、ASTM/ASME A269/SA269、

DIN 17458-85、DIN 17456-85、JIS G 3459、JIS G 3463、JIS G 3448、JIS G 344

Size Sheet(0.2mm-4mm)
Slab(4mm-20mm)
Thick plate(20mm-60mm)
Special thick plate(60-115mm)

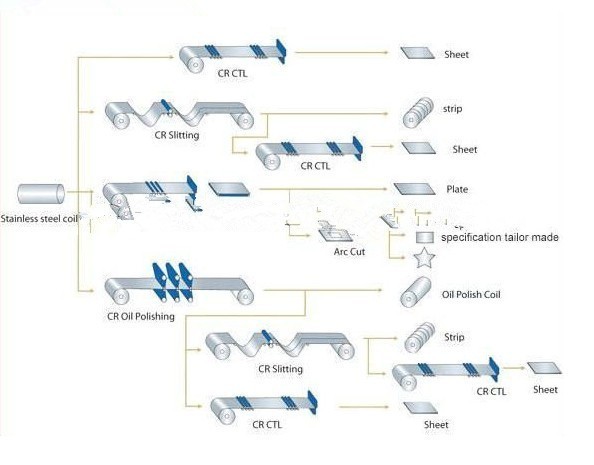

Industrial process hot rolled,hot expanded,cold drawn,and hot galvanized
a) Outer Diameter:6-32mm:+/- 0.2mm, 32-38:+/-0.15mm,

42-60:+/-0.20mm,60mm:+/-0.25mm

Tolerance b) Thickness: +/- 10%
c) Length: +/- 5mm
Surface 180G, 240G, 320G Satin / Hairline
400G, 600G Mirror finish
Application steel bridge,boiler plate,shipbuilding steel,steel armor,automotive steel,

roof plate,structural Steel,electrical steel etc.

Test Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
Material 201 202 304 316L 430
Composition
C ≤0.15 ≤0.15 ≤0.08 ≤0.035 ≤0.12
Chemical Composition  Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00
of Material Mn 5.5-7.5 7.5-10 ≤2.00 ≤2.00 ≤1.00
P ≤0.06 ≤0.06 ≤0.045 ≤0.045 ≤0.040
S ≤0.03 ≤0.03 ≤0.030 ≤0.030 ≤0.030
Cr 13-15 14-17 18-20 16-18 16-18
Ni 0.7-1.1 3.5-4.5 8-10.5
Mo 2.0-3.0
Material Item 201 202 304 316
Mechanical Property Tensile Strength ≥535 ≥520 ≥520 ≥520
Yield Strength ≥245 ≥205 ≥205 ≥205
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <105 <100 <90 <90
